• Differential, heavy-duty locking rear
• Transfer case, active, 2-speed with rotary controls (Requires 4WD models.)
• 4-wheel drive
• Alternator, 160 amps
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• Recovery hooks, 2 front, frame-mounted
• GVWR, 7300 lbs. (3311 kg) (Standard on 4WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with stabilizer bar
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench stored in rear quarter trim

• Wheels, 4-17" x 7.5" (43.2 cm x 19.1 cm) bright aluminum, sport (Requires (K5L) Heavy-Duty Trailering Package on 2WD models. Not available with (PCQ) or (PDQ) SLT Chrome Edition. Not available with (XFE) XFE - Xtra Fuel Economy.)
• Tires, P265/70R17 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 (Upgradeable to (4JP) P265/70R17 on-/off-road, blackwall spare tire.)
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Air dam, Gray
• Moldings, body-color bodyside
• Grille, chrome surround
• Assist steps, Black, mounted between front and rear wheels (Upgradeable to (BRS) power-retractable assist steps.)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front rectangular halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color, with integrated turn signal indicators, ground illumination and curb-tilt (Includes memory function with (AN3) front bucket seats.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent wet-arm with flat blade and pulse washers
• Liftgate with liftglass, rear door system with rear-window wiper/washer
• Wiper, rear intermittent with washer

• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer seek-and-scan, digital clock and auto-tone control (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• XM Radio. XM Radio includes 3 trial months of service. XM turns your world on with commercial-free music channels from Rock to Jazz, Country to Classical, Latin Pop to Hip Hop, and virtually everything in between, all in amazing digital sound. Turn on your favorite Sports with every Major League Baseball game from Opening Day until the World Series, NHL Hockey, the PGA TOUR and college football and basketball. Plus XM brings you the biggest names in news and talk, outrageous comedy, award-winning family programming -- wherever you go from coast to coast. Exclusive live concerts, Oprah and Friends, Radio Disney, and so much more. Find what turns you on (Available only in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. Visit gm.xmradio.com for more details)
• Antenna, integral in rear quarter glass

• Seats, front bucket with leather-appointed seating, 10-way power driver and front passenger seat adjusters, including power lumbar control, power recline, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console
• Seats, third row 50/50 split-bench with vinyl, 3-passenger, removable, all-belts-to-seat
• Seat adjuster, driver power
• Seat adjuster, front passenger power
• Seats, second row 60/40 split-folding bench with leather-appointed seating, 3-passenger with center armrest and storage tray
• Seats, heated second row
• Console, floor with storage area, cup holders and integrated second row audio and HVAC controls (Included and only available with (A95) front bucket seats or (AN3) front bucket seats with leather-appointed seating surfaces.)
• Cup holders, in front seating area
• Cup holders, in rear of floor console
• Cup holders, driver and passenger-side in third row side trim
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls located on instrument panel
• Tow/haul mode selector, button located at end of shift lever
• Driver Information Center, full-functionality included
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Universal Home Remote, includes garage door opener, programmable
• Remote vehicle starter system, includes Remote Keyless Entry
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console.
• Door trim, side reflectors on the rear doors
• Armrests, driver and passenger doors, padded
• Mirror, inside rearview auto-dimming (Upgradeable to (DRC) inside rearview auto-dimming mirror with rear camera display)
• Console, overhead mini with map lights (Includes controls for sunroof, power liftgate and power release second row seats when (CF5) power sunroof, (E61) power liftgate with liftglass and (ARS) second row power seat release is ordered.)
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod, includes corner storage pockets on back of visors, Shale-colored
• Assist handles, front passenger and second row outboard
• Coat hooks, driver- and passenger-side rear seat and cargo area
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Storage bin, behind driver-side rear quarter panel

• StabiliTrak, stability control system with traction control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• OnStar, 1-year of Directions and Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Crash Notification, Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, a link to all Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details. For a list of vehicles with Automatic Crash Notification visit onstar.com.)
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (320 hp [238.6 kW] @ 5200 rpm
• 340 lb-ft of torque [459.0 N-m] @ 4200 rpm)
• iron block (STD)

• Suspension Package
• Premium Smooth Ride
• Engine
• Vortec 5.3L V8 SFI FlexFuel with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (320 hp [238.6 kW] @ 5200 rpm
• 340 lb-ft of torque [459.0 N-m] @ 4200 rpm)
• iron block (Standard on 4WD models. 2WD models require (K5L) Heavy-Duty Trailering Package.)
• Rear axle
• 3.42 ratio (Standard on 4WD models. Required with (K5L) Heavy-Duty Trailering Package on 2WD models. Available on 2WD models without (K5L) Heavy-Duty Trailering Package. Not available with (LY2) Vortec 4.8L V8 SFI engine.)
• Differential
• heavy-duty locking rear
• Transfer case
• active
• 2-speed with rotary controls (Requires 4WD models.)
• 4-wheel drive
• Alternator
• 160 amps
• Trailering equipment
• heavy-duty includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• GVWR
• 7300 lbs. (3311 kg) (Standard on 4WD models.)
• Suspension
• front coil-over-shock with stabilizer bar
• Suspension
• rear multi-link with stabilizer bar
• Steering
• power
• Brakes
• 4-wheel antilock
• 4-wheel disc
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tools
• mechanical jack and wheel wrench stored in rear quarter trim
• Wheel
• 17" (43.2 cm) full-size
• steel spare
• Tire carrier
• lockable outside spare winch-type mounted under frame at rear
• Fascia
• front color-keyed
• Fascia
• rear color-keyed
• Air dam
• Gray
• Moldings
• body-color bodyside
• Grille
• chrome surround
• Headlamps
• dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps
• front rectangular halogen
• Glass
• Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Liftgate with liftglass
• rear door system with rear-window wiper/washer
• Audio system feature
• Bose premium 9-speaker system with subwoofer in center console
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Antenna
• integral in rear quarter glass
• Seats
• heated second row
• Cup holders
• in front seating area
• Cup holders
• in rear of floor console
• Cup holders
• driver and passenger-side in third row side trim
• Floor covering
• color-keyed carpeting
• Steering column
• Tilt-Wheel
• adjustable with brake/transmission shift interlock
• Steering wheel
• leather-wrapped
• Driver Information Center
• full-functionality included
• Instrumentation
• analog with speedometer
• odometer with trip odometer
• fuel level
• voltmeter
• engine temperature
• oil pressure
• tachometer compass and temperature gauge
• Warning tones headlamp on
• key-in-ignition
• driver and passenger buckle up reminder and turn signal on
• Windows
• power with driver Express-Down and lockout features
• Pedals
• power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Universal Home Remote
• includes garage door opener
• programmable
• Rear Parking Assist
• Ultrasonic with rearview LED display and audible warning
• Heater
• rear auxiliary with rear passenger heating ducts
• Defogger
• rear-window electric
• Theft-deterrent system
• vehicle
• PASS-Key III
• Door trim
• side reflectors on the rear doors
• Armrests
• driver and passenger doors
• padded
• Visors
• driver and front passenger illuminated vanity mirrors
• padded with cloth trim
• extends on rod
• includes corner storage pockets on back of visors
• Shale-colored
• Assist handles
• front passenger and second row outboard
• Coat hooks
• driver- and passenger-side rear seat and cargo area
• Storage bin
• behind driver-side rear quarter panel
• StabiliTrak
• stability control system with Traction Control
• Air bags
• dual-stage frontal
• driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System
• children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags
• head curtain side-impact
• first and second row outboard seating positions with rollover sensor
• includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size
• even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire pressure monitoring system (does not apply to spare tire)

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2924
• Curb Weight - Rear (lbs): 2657
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 855
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.8
• Tires
• Front Tire Order Code: QAN
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZRS
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2105
• Rear Tire Capacity (lbs): 2105
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

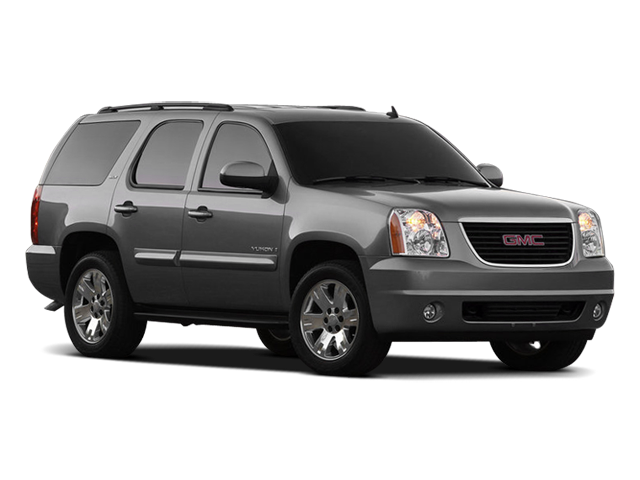

• Vehicle Name: GMC Yukon
• Body Style: 4 Door
• Emissions
• EPA Greenhouse Gas Score: 3
